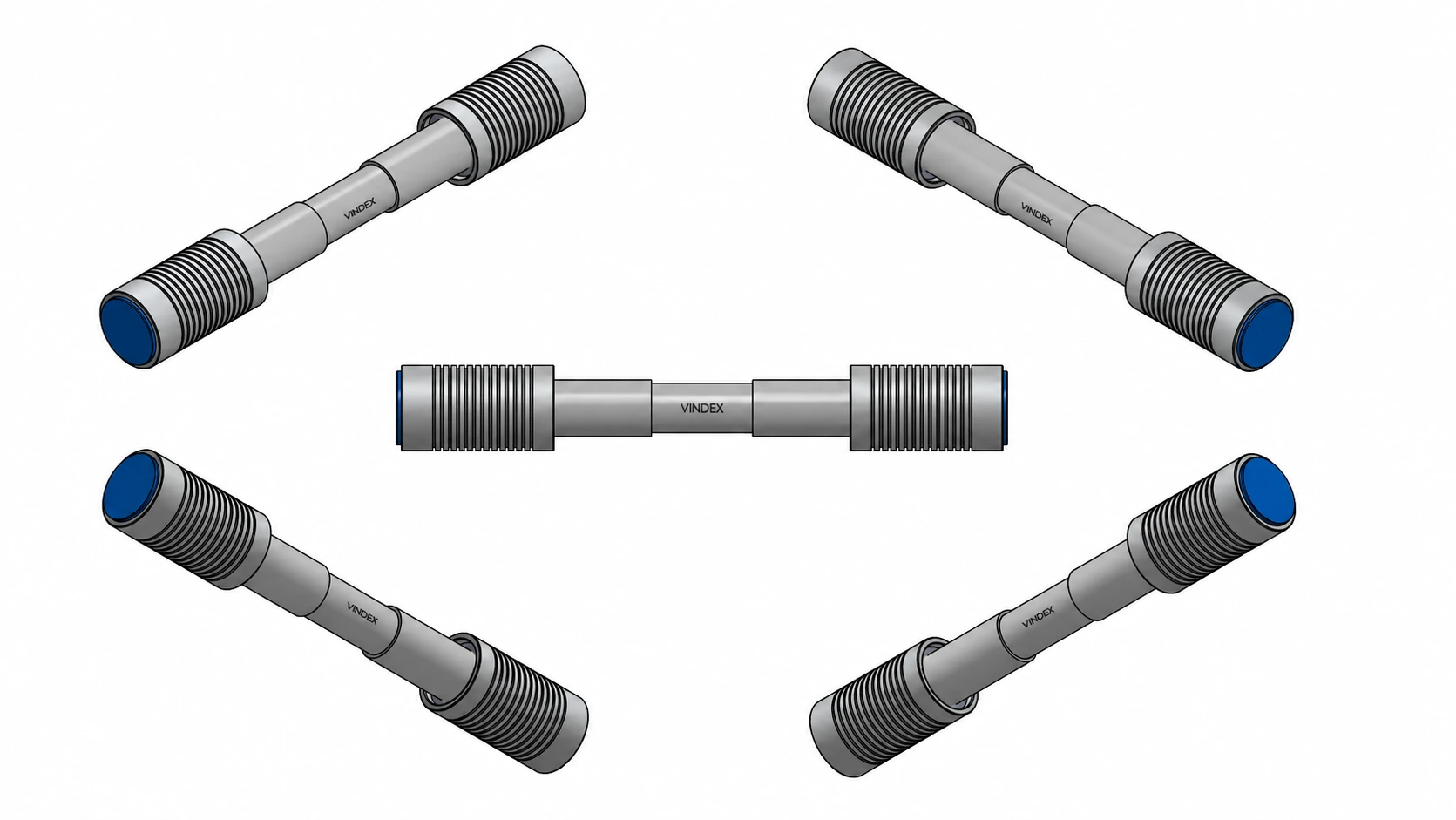

LP 1014-0025-222 Top Roller
LP 1014-0025-222 is a textile top roller reference listed here for ring frame applications, with 100 mm gauge, 134 mm length. Review the application-specific weighting arm and the available dimensions below when preparing your enquiry.
Application & selection

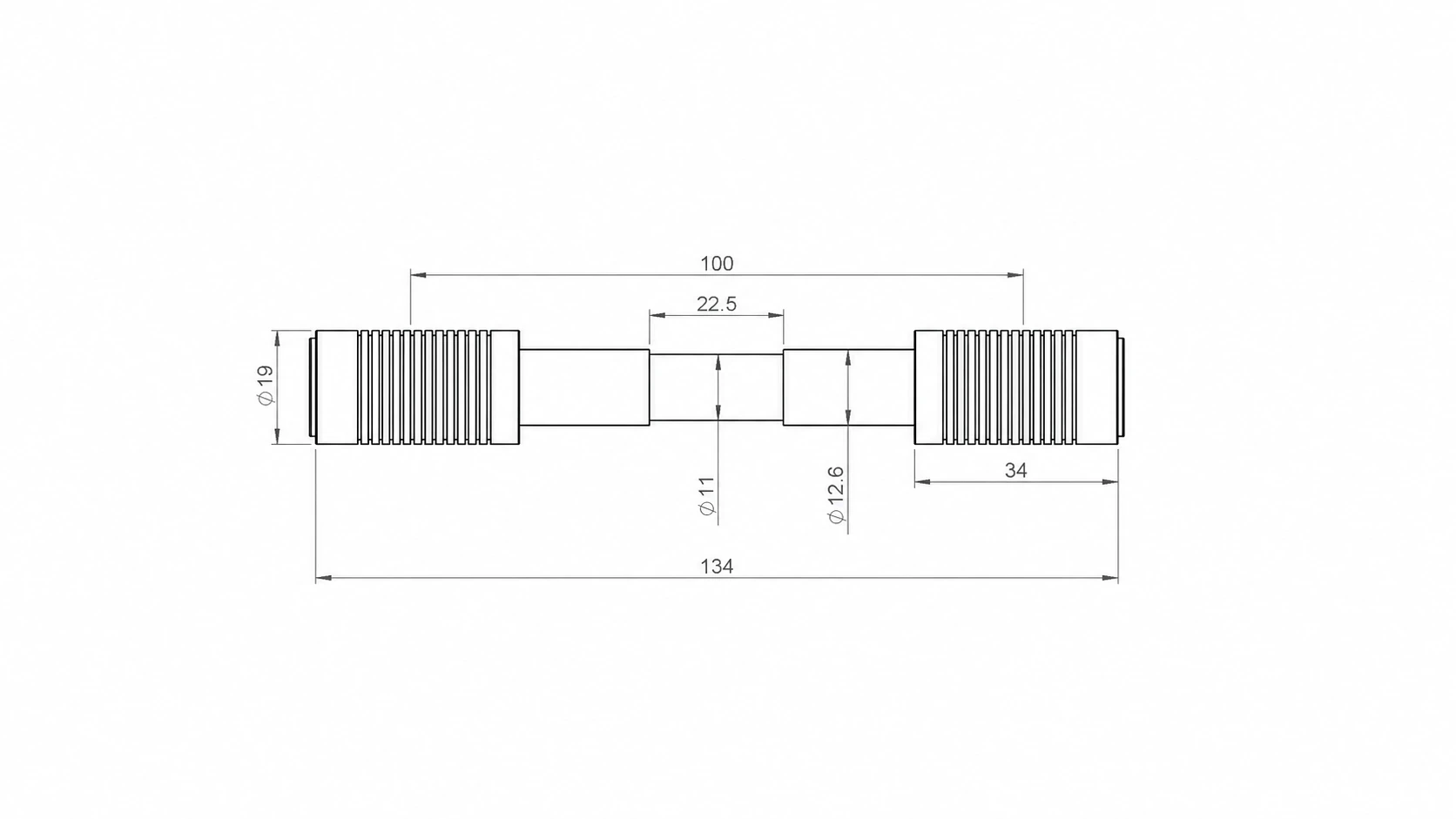

| Category | Gauge (mm) | Dimension (mm) | Application / Machine | Weighting arms |
|---|---|---|---|---|
| Ring Frame | 100 | 134 | Worsted Ring Spinning Top Rollers | PK 6000 & PK 1601 |
The overview and detail source differ for Gauge, Total Length. Both are shown here for review; confirm the required drawing before ordering.
| Value | Specification |
|---|---|
| 68.4 mm | Gauge |
| 98.4 mm | Total Length |
| 16.2 mm | Center Shaft Distance |
| 9.5 mm | Center Shaft Diameter |
| 11.36 mm | Both end shaft Diameter |
| 25 mm | Bearing Dia |
| 30 mm | Bearing Length |
| Parameter | Reference value |
|---|---|
| Top Roller Load | Maximum 35 daN |
| Weight | 0.145 - 0.150 |
| Property | Reference value |
|---|---|
| Contact type Top Roller | Normal contact (two-point contact) |
| End Cover Top Roller | Blue |
| Number of rows | 2 |
| Suitable ARMS | PK 2000 & PK 2600 |
| Uses Top Roller | Front & Rear Top Roller |
| Universal matching bearing | LP-1003-1256-596 |
| Material, bearing | Bearing steel |
| Grease | Internal Grease Only |
| Sealing | All Side Steal Seal |
| Lubricant | Applicable at the time of installation |
| Relubrication feature | Available |
LP 1014-0025-222 — Frequently Asked Questions
How do I confirm LP 1014-0025-222 fits my machine?
Compare the model reference, gauge, overall dimensions, application and weighting arm with your existing assembly or approved drawing.
Are all technical values confirmed?
Check any reference-value notices on this page. Where a photograph or technical detail is unavailable, send your sample or drawing for confirmation before ordering.
What should I send for a quotation?
Send reference LP 1014-0025-222, required quantity, machine make and model, destination city or country, and a sample photograph or drawing.
Can top roller buyers from all Indian states and cities enquire?
Yes. Enquiries are welcome from every Indian state, Union Territory and city. Send your top roller model, machine details, quantity, city, state and PIN code. Fitment, delivery availability and lead time are confirmed in the quotation.
Can buyers from the 87 listed countries request top rollers?
Yes. Buyers in the countries listed in our export guide can request a quotation. Include the model reference, gauge, weighting arm, quantity, destination country and port or postal code. Product availability and shipping terms are confirmed for each enquiry.
