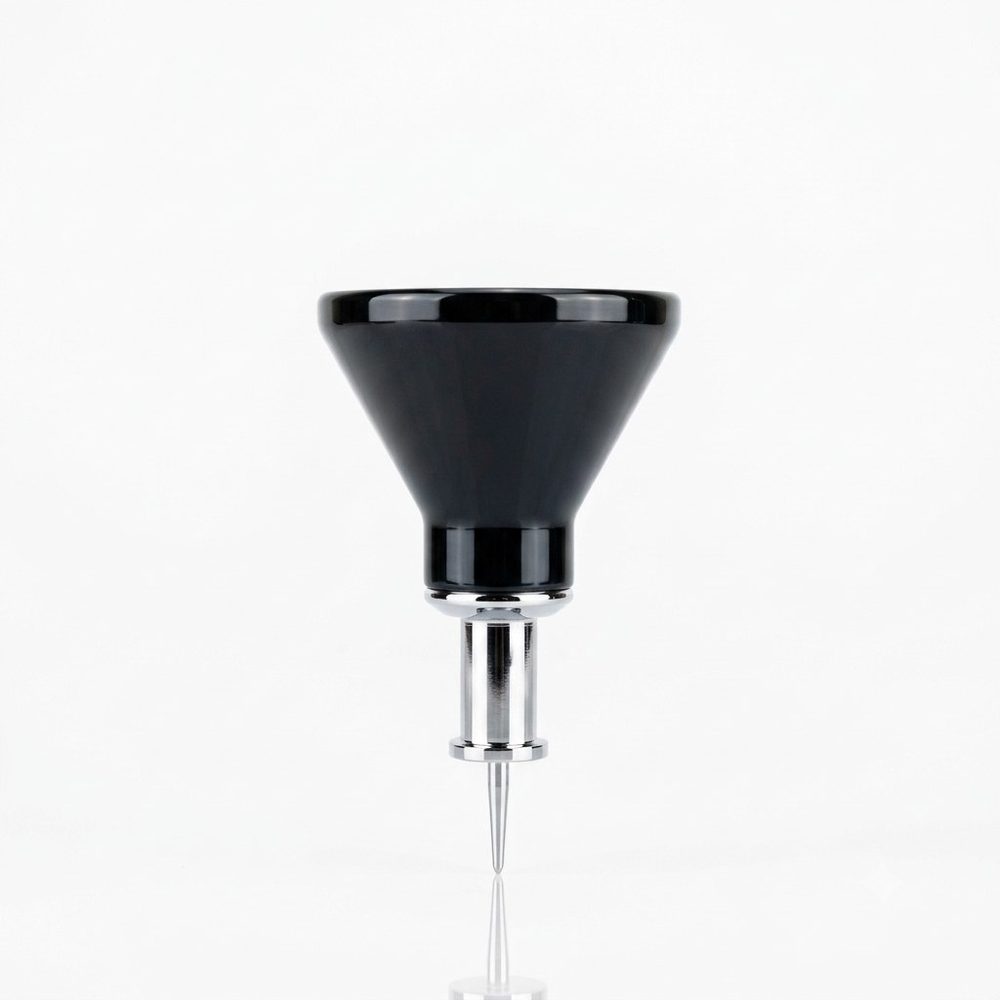

Ratti F325 TFO Spindle Bolster
Spindle bolster for Ratti F325 TFO.
Application and construction
TFO yarn, cotton and jute-industry applications. The page title and images identify the OEM-compatible family.
- Models
- HZ-3C, HZ-33, HZ-44, HZ-55, HZ-66, HZ-68, HZ-77; 20 / 24 / 28 mm neck bearing
- Speed
- Up to 10,000 rpm
- Lift
- Up to 250 mm
- Wharve diameter
- 25.4 mm and above
- Ring diameter
- 2.5 / 3 inch
- Materials
- EN-31 / AISI-52100 blade
Features
- Vibration up to 0.05 mm/sec
- Noise level up to 75 dBA
- Dynamically balanced
- Complete set with flange, nut and spindle lock
- Multi-stage quality checks
- Reduced-weight spindle top available by design.
Specifications
The Ratti F325 is a European two-for-one twister built for fine, high-value yarns — exactly the application where spindle vibration costs the most. On fine counts, even slight bolster wear translates into visible yarn faults and rejected cones. Vindex Industries manufactures the Ratti F325 TFO spindle bolster since 1985 at Surendranagar, Gujarat, exporting it to twisting mills in 87 countries in bulk order quantities.
The bolster is made for the Ratti F325 spindle profile; share your machine make and model so the Vindex team can confirm the match before quoting. Send an enquiry with your machine details and the team will confirm the match and quote accordingly.
Mills running fine counts on the F325 typically inspect bolsters on a fixed schedule rather than waiting for faults — the cost of one rejected batch dwarfs the cost of a planned bolster change.
Export markets
Vindex Industries manufactures this product in Surendranagar, Gujarat, and exports textile machinery spares to 87 countries — including Bangladesh, Vietnam, Turkey, Indonesia, Pakistan, Egypt, Uzbekistan, Brazil, Mexico and Thailand. Request an export quote.
