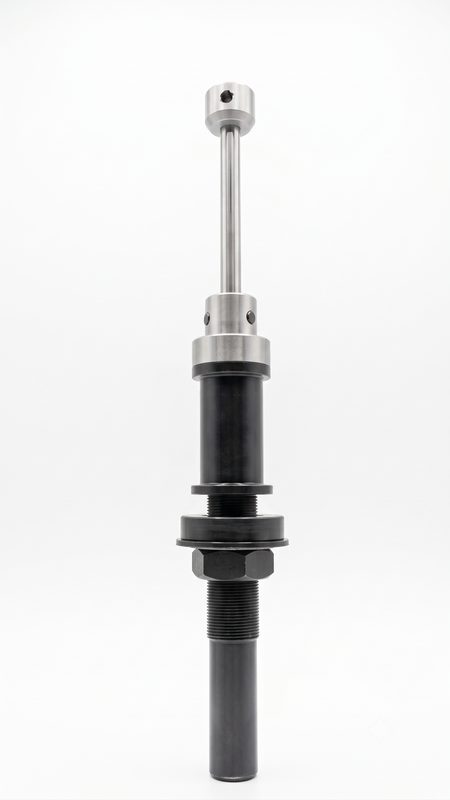

HZ-3C Cop Winding Spindle Bolster
HZ-3C spindle for cops winding.
Winder, cops-winding and heavy-duty textile spindle applications.
Suitable machines
Process types
- Cotton Industries
- Fiber Glass Industries
- Nylon Fish Net Twine Industries
- Jute Industries
- Asbestos Industries
Product description
- Spindle blade: EN-31 / AISI-52100 bearing steel; aluminum plug: HE30
- Wharve diameter 24.5 mm and above
- Supplied as a complete set with flange, nut and spindle lock
- Made for ring diameter 3.5 in and 4 in
- Supplied with specified insert as Vindex Industries
- Models
- HZ-3C / HZ-33 / HZ-44
- Speed
- 3,000–12,000 rpm
- Lift
- 204–420 mm
- Wharve diameter
- 24.5 mm and above
- Ring diameter
- 3.5 / 4 inch
- Materials
- EN-31 / AISI-52100 blade · HE30 aluminum plug
Application
- Vibration reduced up to 0.05 mm/sec
- Lift size 204 to 420 mm
- Noise reduced to 75 dBA
- Long working life
- Reduced weight of spindle top part (new design)
- Short delivery time
Advantages
- Low noise and low power
- Speed 3,000–12,000 rpm
- Dynamically balanced
- Multi-stage quality checks
Specifications
Cop winding spindles start and stop constantly and handle the package directly — the bolster takes reversing loads that a ring-frame bolster never sees. The HZ-3C is built for that duty: rated 3,000–12,000 rpm, it keeps the spindle steady through long winding cycles. Vindex Industries manufactures this spindle bolster since 1985 at Surendranagar, Gujarat, exporting it to spinning and twisting mills in 87 countries in bulk order quantities.
It replaces the original HZ-3C geometry directly, so winders go back into production with no adaptation. View the product specifications on this page for dimensions and details.
Winding departments that change bolsters on a running schedule — rather than waiting for vibration — keep package build quality consistent and avoid the unwinding faults a wobbling spindle creates downstream.
Export markets
Vindex Industries manufactures this product in Surendranagar, Gujarat, and exports textile machinery spares to 87 countries — including Bangladesh, Vietnam, Turkey, Indonesia, Pakistan, Egypt, Uzbekistan, Brazil, Mexico and Thailand. Request an export quote.
