Products/Bottom Roller / Fluted Roller / Knurled Roller/Bottom Roller for Both Ring Frames
Individual product

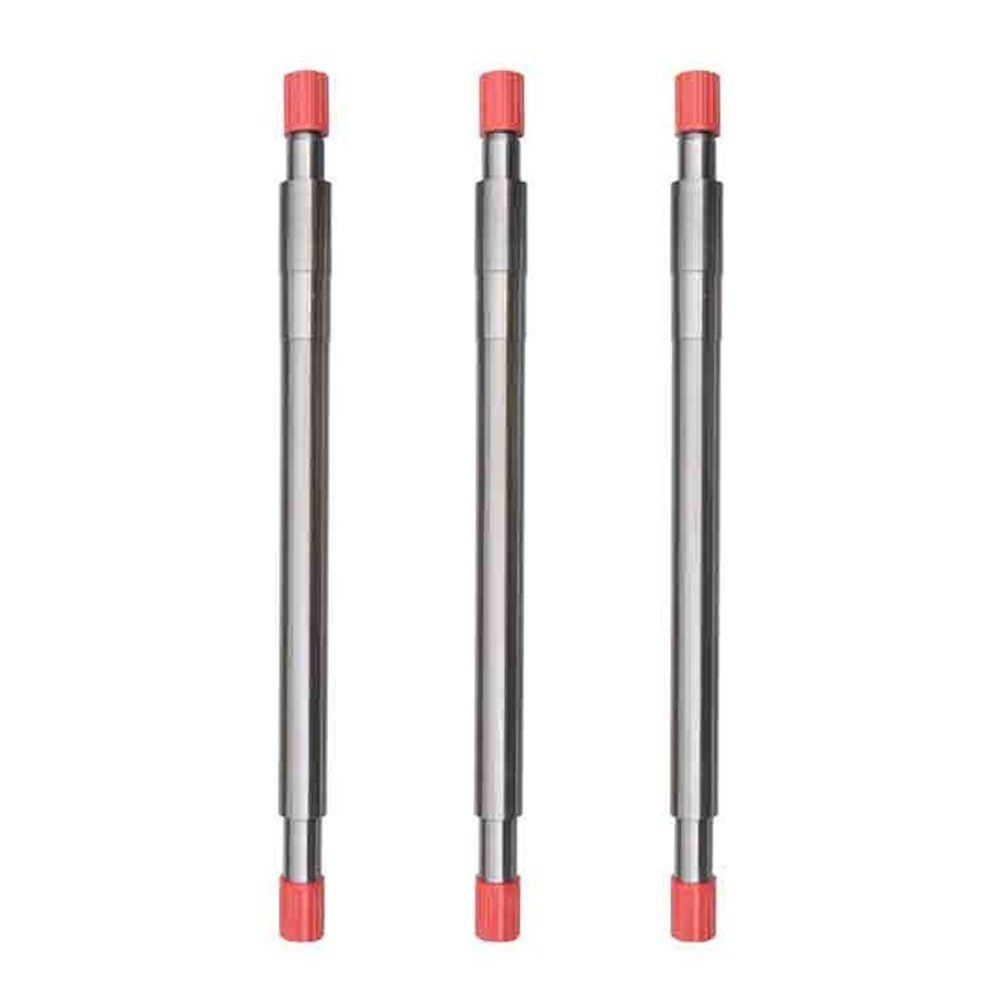

Bottom Roller for Both Ring Frames

Compact bottom roller for both ring-frame configurations. Compatible with LMW, Rieter, Zinser, KTTM, Marzoli, Textool and Texmaco machines.

Bottom Roller for Both Ring Frames
Product details

Application and construction

CNC-machined bottom roller for the named spinning-preparation or ring-frame application.

Model
DJ
Material
No.45 special carbon steel
Roller diameter
φ25 or φ27
Dynamic pulsation
±0.02 mm; maximum ±0.03 mm
Non-mechanical wave
98%
Warranty
1 year

Features

  • Fluted or herringbone / diamond knurled working surface as applicable
  • Hard-chrome-plated finish
  • Bending resistance increased by 9.1%
  • Final section, flute, pitch and roller dimensions should match the machine drawing or sample.

Specifications

This compact bottom roller is built for both ring-frame configurations — one roller covering the compact spinning positions across frame types. Standardising on a both-frames roller cuts spares variety for mills running mixed compact installations. Vindex Industries manufactures this bottom roller since 1985 at Surendranagar, Gujarat, exporting it to spinning mills in 87 countries in bulk order quantities.

It is made for its compact positions; share your machine make and model so the Vindex team can confirm the match before quoting. View the product specifications on this page for details.

For export enquiries, listing your compact frame makes and models lets the team confirm coverage across your installation and quote accordingly.

"Both ring frames" is a coverage promise that has to be earned dimensionally. This roller pattern serves the compact spinning positions across both frame configurations a mill is likely to run, but the final section, flute form, pitch and overall dimensions must still agree with each frame's drawing — the specification on this page (Model DJ, No.45 special carbon steel, φ25 or φ27, dynamic pulsation held to ±0.02 mm) is the checklist to verify against. Mills standardising on one pattern for mixed compact installations should confirm both frames against that checklist once; after that, a single roller specification covers the shed's compact positions and the spares shelf carries one line instead of two.

Bottom Roller for Both Ring Frames — Frequently Asked Questions

What does both ring frames mean — which frames can it serve?

It is a compact bottom roller made to serve both conventional and compact ring-frame configurations. It is compatible with LMW, Rieter, Zinser, KTTM, Marzoli, Textool and Texmaco machines — send your frame make and model so the team confirms the match.

If I run conventional and compact frames in one mill, can I use one roller type?

That is what this roller is for — a single compact bottom roller configuration that serves both ring-frame configurations, simplifying your spare inventory. The final section, flute, pitch and roller dimensions should still match your machine drawing or sample.

What are the key specifications of this dual ring-frame roller?

Model DJ, No.45 special carbon steel, roller diameter phi 25 or phi 27, dynamic pulsation plus-minus 0.02 mm (maximum plus-minus 0.03 mm), 98 percent non-mechanical wave, hard-chrome-plated finish, fluted or herringbone / diamond knurled surface, with a 1-year warranty.

Can I order this roller in bulk for export?

Yes — manufactured at Surendranagar, Gujarat since 1985 and exported to spinning mills in 87 countries in bulk order quantities. Contact via WhatsApp or email with your frame details and required quantity.
