Muratec 310A TFO Spindle Bolster

Spindle set and bolster variants for Muratec 310A.

Muratec 310A TFO Spindle Bolster
Product details

Application and construction

Models
HZ-3C, HZ-33, HZ-44, HZ-55, HZ-66, HZ-68, HZ-77; 20 / 24 / 28 mm neck bearing
Speed
Up to 10,000 rpm
Lift
Up to 250 mm
Wharve diameter
25.4 mm and above
Ring diameter
2.5 / 3 inch
Materials
EN-31 / AISI-52100 blade

Features

  • Vibration up to 0.05 mm/sec
  • Noise level up to 75 dBA
  • Dynamically balanced
  • Complete set with flange, nut and spindle lock
  • Multi-stage quality checks
  • Reduced-weight spindle top available by design.

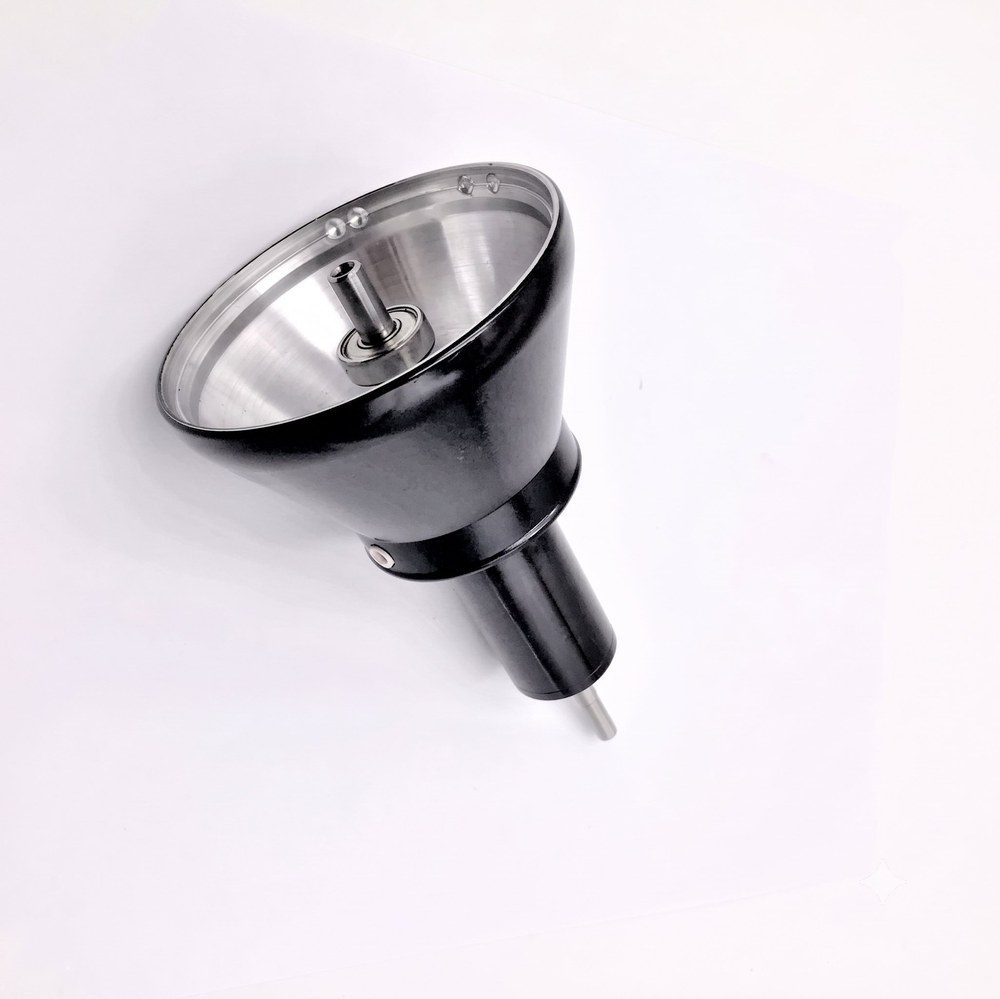

Muratec 310A TFO Spindle Bolster — view 1Muratec 310A TFO Spindle Bolster — view 2Muratec 310A TFO Spindle Bolster — view 3

Specifications

The Muratec 310A spindle set and bolster variants on this page are built to the 310A machine geometry — spindle and bolster matched as a set, so the assembly goes onto the machine balanced and ready to run. Vindex Industries manufactures this spindle bolster since 1985 at Surendranagar, Gujarat, exporting it to spinning and twisting mills in 87 countries in bulk order quantities.

View the product specifications on this page for dimensions and details, then send an enquiry with your 310A details for a confirmed match.

Ordering spindle and bolster as a matched set avoids the mismatch wear that comes from pairing a new spindle with a tired bolster — or the reverse.

An ordering note for 310A owners: the 310A and the earlier 302 stand side by side in many sheds, and their bolsters are close enough in appearance to be confused at the stores counter — but they are matched to different machine geometry, and the assembly on this page is built for the 310A. The reliable identifiers are the machine plate and the neck bearing size: the family runs 20, 24 and 28 mm neck bearings, and the variant follows the machine, not preference. Supplied as a complete set with flange, nut and spindle lock, in EN-31 / AISI-52100 blade steel, each assembly is dynamically balanced and passes the Multi-stage quality checks listed in the specification before dispatch.

Muratec 310A TFO Spindle Bolster — Frequently Asked Questions

What does “spindle set and bolster variants” mean on this page?

The 310A is offered as a spindle set with the bolster matched as a set to the 310A machine geometry. Supplied together, the assembly goes onto the machine balanced and ready to run.

Will this fit my Muratec 310A twister?

Yes — the spindle set and bolster variants on this page are built to the 310A machine geometry. Share your machine make and model when you enquire so the Vindex team can confirm the match before quoting.

Why buy the spindle and bolster as a matched set?

A matched set is balanced together, so it seats correctly and runs vibration-free at TFO speeds. Mixing an unmatched spindle and bolster risks imbalance and premature wear.

How do I place a bulk or export order for the Muratec 310A?

Send the exact machine make, model, dimensions and required quantity via the enquiry form, WhatsApp or email. Vindex Industries manufactures at Surendranagar, Gujarat since 1985 and exports in bulk quantities to mills in 87 countries.
