Products/TFO Spindles & Bolsters/Muratec 363 Air Threading Spindle Bolster
Individual product

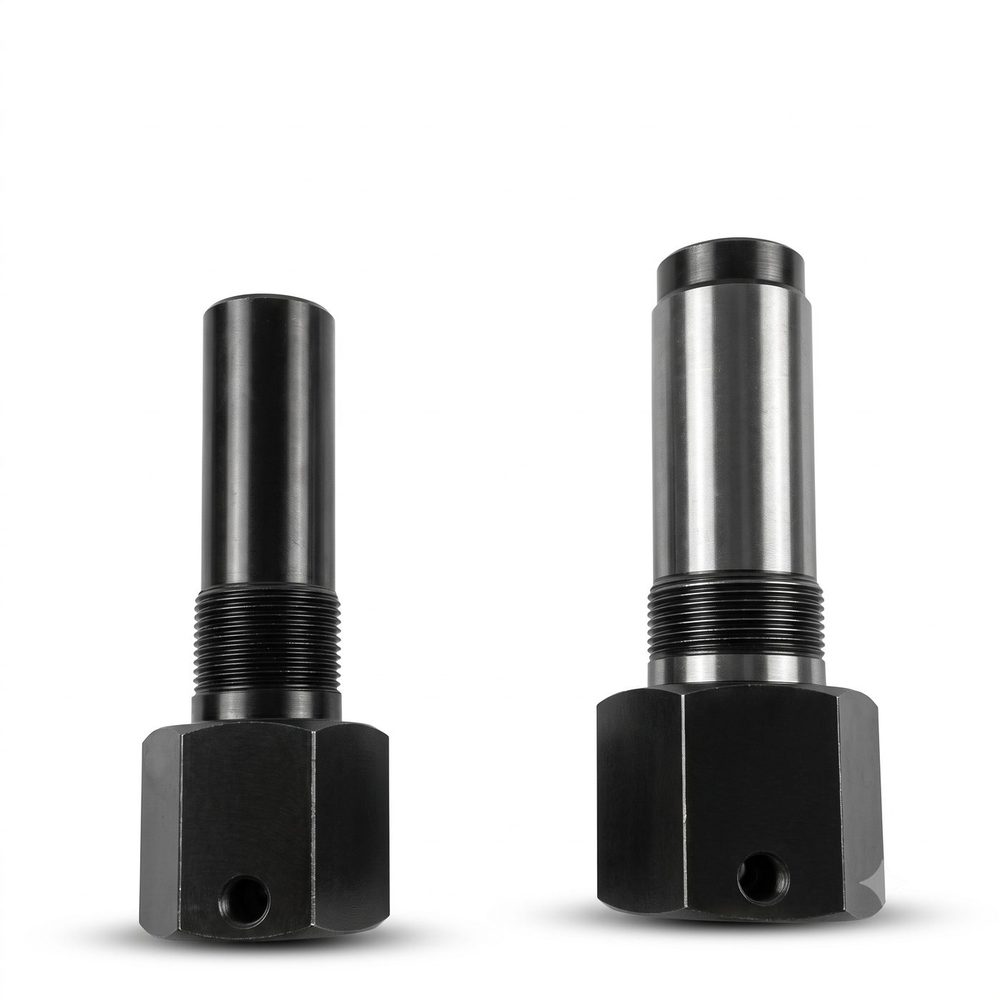

Muratec 363 Air Threading Spindle Bolster

Air-threading bolster for Muratec 363.

Muratec 363 Air Threading Spindle Bolster
Product details

Application and construction

Models
HZ-3C, HZ-33, HZ-44, HZ-55, HZ-66, HZ-68, HZ-77; 20 / 24 / 28 mm neck bearing
Speed
Up to 10,000 rpm
Lift
Up to 250 mm
Wharve diameter
25.4 mm and above
Ring diameter
2.5 / 3 inch
Materials
EN-31 / AISI-52100 blade

Features

  • Vibration up to 0.05 mm/sec
  • Noise level up to 75 dBA
  • Dynamically balanced
  • Complete set with flange, nut and spindle lock
  • Multi-stage quality checks
  • Reduced-weight spindle top available by design.

Specifications

The Muratec 363 air-threading variant adds pneumatic threading passages to the bolster — a geometry more demanding than the standard 363. This air-threading bolster is built to the 363 air-threading profile so threading stays crisp and doff cycles stay short. Vindex Industries manufactures this spindle bolster since 1985 at Surendranagar, Gujarat, exporting it to spinning and twisting mills in 87 countries in bulk order quantities.

View the product specifications on this page for dimensions and details, then send an enquiry for a confirmed match.

Weak air-threading is often a worn bolster, not a machine fault — if threading needs repeated attempts, the bolster seating and passages are the first things to check.

Air threading changes what a bolster has to be. On the 363 air-threading variant, the bolster carries pneumatic passages that blow the yarn through at threading, so its internal geometry is more demanding than the standard 363 bolster's — and the two are not substitutes for each other. When threading weakens, work through the air path in order: supply pressure first, then passage blockage from lint and oil mist, then the bolster seating itself. Passage condition is also why this variant should be ordered by its full name — Muratec 363 air threading — and not simply as a 363 bolster; Vindex confirms the air-threading profile against your machine details before quoting, so the replacement threads as crisply as the original.

Muratec 363 Air Threading Bolster — Frequently Asked Questions

How is this air-threading bolster different from a standard 363 bolster?

The air-threading variant adds pneumatic threading passages to the bolster — a geometry more demanding than the standard 363. It is built to the 363 air-threading profile so threading stays crisp and doff cycles stay short.

Which Muratec machines does the 363 air-threading bolster fit?

Muratec 363 TFO twisters with air-threading equipment. Because the air-threading passages make the profile more demanding, share your exact machine model so the team can confirm the match before quoting.

What maintenance does the air-threading bolster need?

Keep the pneumatic threading passages clean and free of fluff and oil residue so threading stays reliable. As with any TFO bolster, watch for rising vibration or noise as signs of wear.

Do you supply air-threading bolsters in bulk for export?

Yes — Vindex Industries manufactures at Surendranagar, Gujarat since 1985 and exports in bulk order quantities to twisting mills in 87 countries. Send machine make, model, dimensions and quantity for a quotation.
