Roving Frame Flyers

Flyer assembly and accessory enquiries for speed-frame / simplex applications.

Flyer assemblies

16 × 6 vs 16 × 7 size references

Reference	16 × 6	16 × 7
Nominal height reference	406.4 mm (16 in)	406.4 mm (16 in)
Nominal diameter reference	152.4 mm (6 in)	177.8 mm (7 in)
Assembly layout	With or without bottom spindle	With or without bottom spindle

Nominal inch-to-mm conversions; mounting and working clearances follow the selected drawing.

Flyer configurations

Choose the flyer layout to suit the roving frame and its bobbin envelope.

Configuration	Size references	Doffing arrangement
Assembly with a lower spindle	16 × 6 in; 16 × 7 in	Manual removal
Assembly without a lower spindle	16 × 6 in; 16 × 7 in	Manual or automatic, depending on the frame

Match the mounting, flyer reference, bobbin dimensions and drive arrangement before selecting an assembly.

Associated components

Enquiries can specify the presser finger, spindle pin, bush, false twister or bearing housing separately. Presser geometry and finish are selected for the roving path; pin/bush dimensions and housing interfaces follow the machine drawing.

Information to send

Machine manufacturer, model and current flyer reference
Bobbin dimensions and manual/automatic doffing arrangement
Mounting photograph or dimensioned drawing
Quantity and delivery destination

Request a Flyer quotation View Pressure Fingers separately →

Roving Frame Flyer FAQ

What is a roving-frame flyer used for?

A flyer twists the drafted fibre strand and guides roving onto the bobbin in a speed frame or simplex. It is separate from a ring-spinning spindle.

Which flyer size references are listed?

16 × 6 in and 16 × 7 in configurations are listed. These are nominal size references; use the selected assembly drawing for mounting dimensions.

What is the difference between versions with and without a bottom spindle?

The with-bottom-spindle configuration is listed for manual doffing. The without-bottom-spindle version may be selected for manual or automatic doffing according to the frame arrangement.

Are pressure fingers and other accessories available separately?

Send the required presser finger, screw pin, bush, false twister or bearing-housing reference separately with your enquiry.

Can I enquire for domestic or export supply?

Send your city or country, quantity and required variant. Vindex will confirm availability, packing, freight options and lead time in the quotation.

Which machine details should I provide?

Provide the exact speed-frame make and model, existing flyer code, bobbin envelope, mounting drawing or photograph, and doffing arrangement. Include these details for LMW, Rieter, Zinser or Toyoda enquiries.

How do I request a Flyer quotation?

Use Get Quote or WhatsApp +91 89805 05555. Include the flyer reference, size, quantity and delivery destination.

Machine make and variant identification

For LMW, Rieter, Zinser or Toyoda enquiries, include the exact machine model, existing flyer code, bobbin size, mounting and doffing arrangement.

Flyer accessories

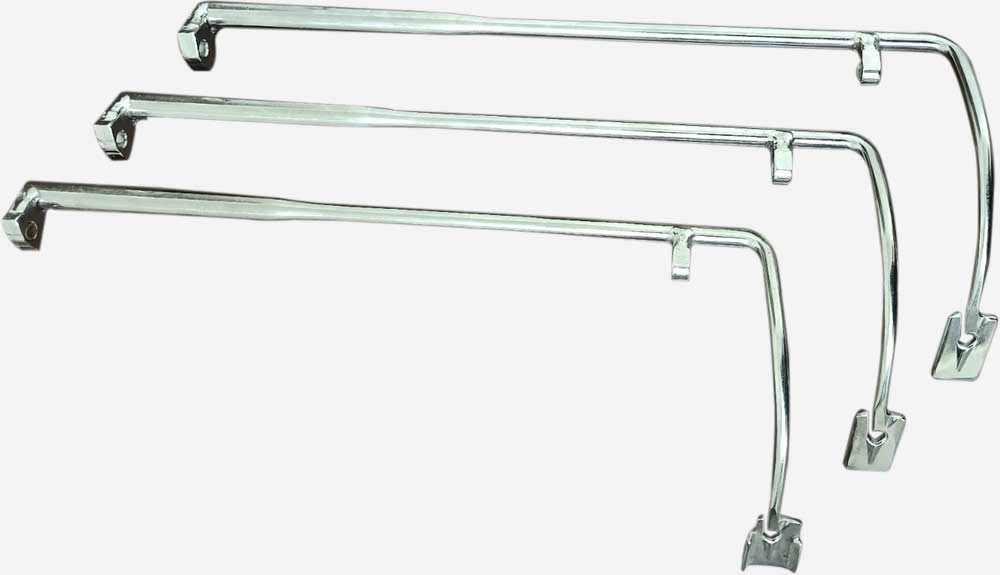

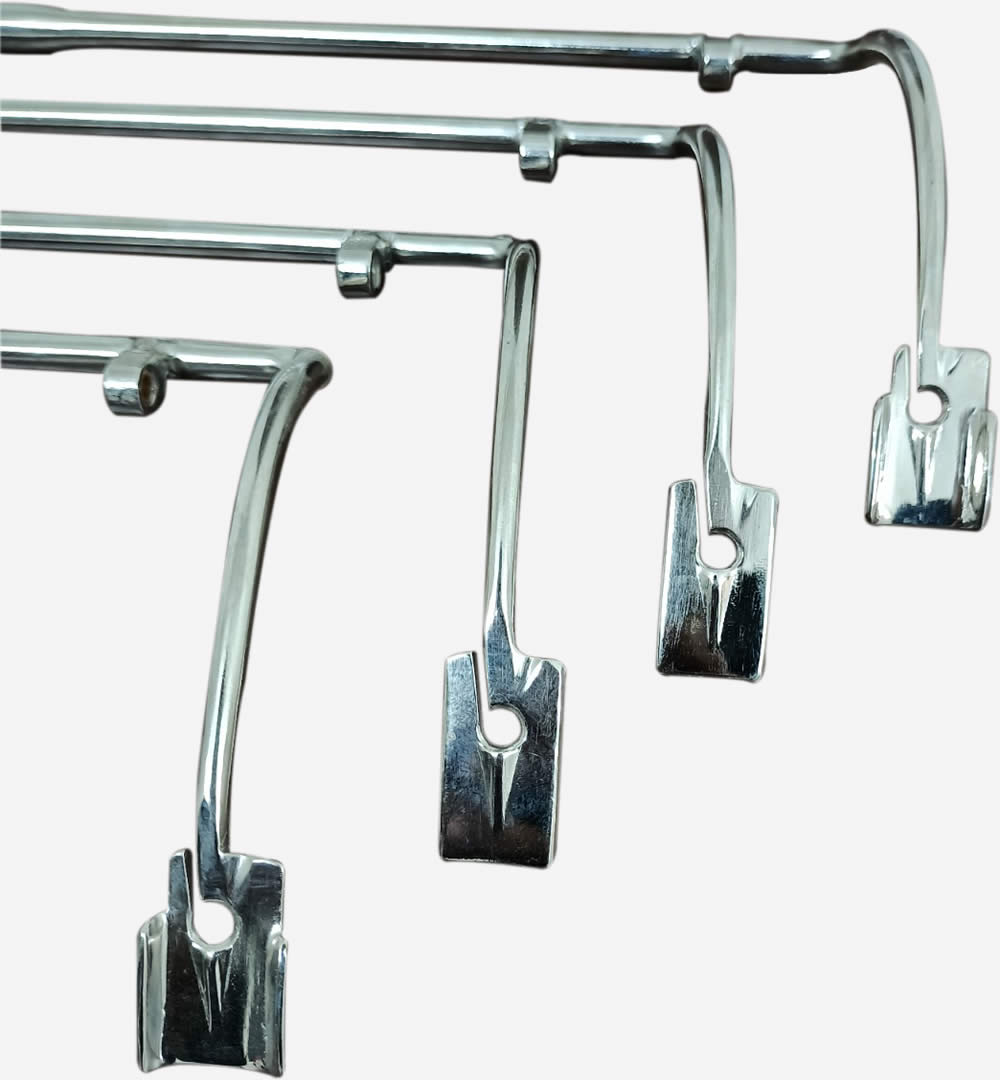

Presser fingers — profile references

Accessory selection references

Component	Published options
AC presser sizes (in)	12×5; 12×6; 12×6.5; 14×6.5
ACS presser sizes (in)	16×5; 16×6; 16×7
Presser configuration	Standard, one-bend or two-bend paddle; open/closed hole
Presser material / finish	Heat-treated alloy steel; powder coating or electroless nickel plating

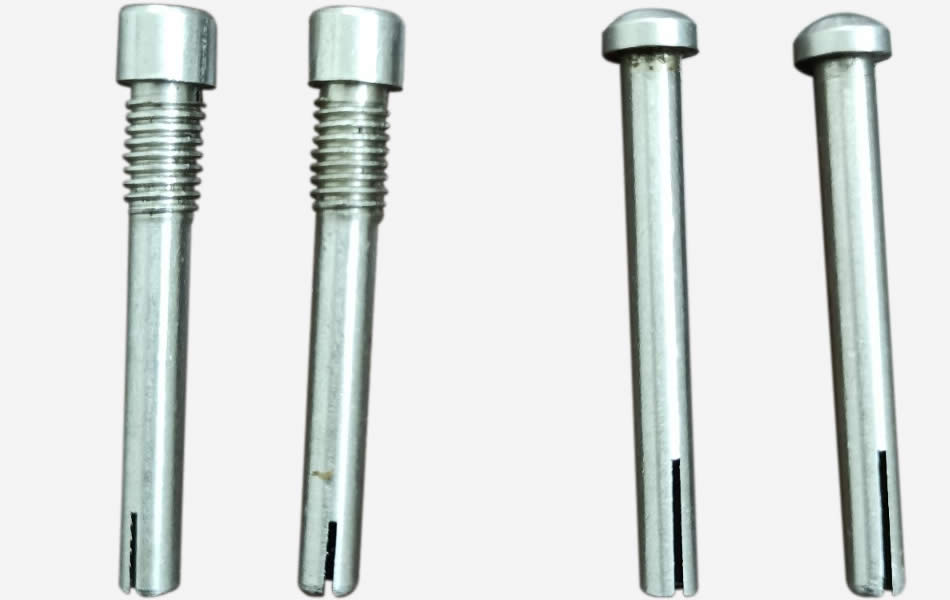

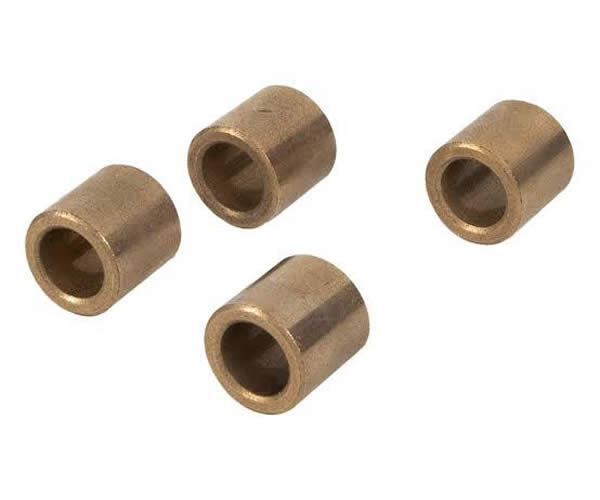

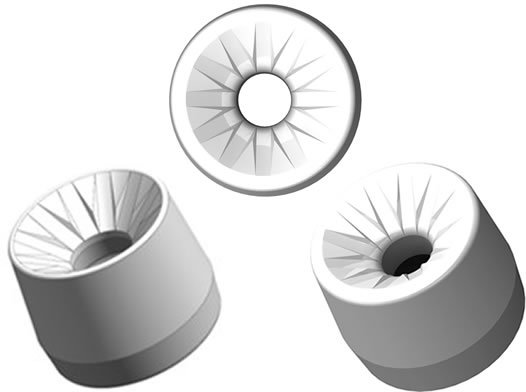

Pin / bush / twister	Stainless steel pin; self-lubricating bush; PU-grade false twister

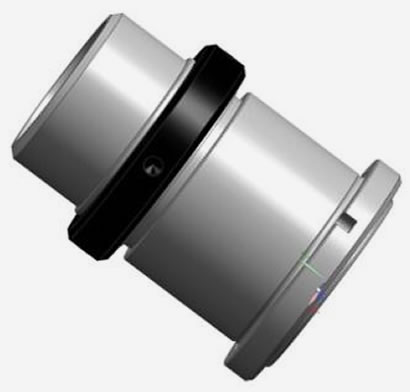

Bearing housing	Machine drawing and mounting reference

Configuration and photo references: Newtech Industries. Send the required variant for a Vindex quotation.

Flyer enquiries: export countries and India

Browse the 87-country enquiry guide and all Indian states, Union Territories and cities already listed on this website. Include your destination and quantity for packing and freight details.

87 export enquiry countries

28 Indian states

8 Union Territories

39 listed Indian cities

Specifying a roving frame flyer

Describe a complete roving frame flyer separately from its pressure finger or presser. For the 16 x 6 and 16 x 7 variants, identify the required arrangement with or without a bottom spindle and compare it with the existing flyer. Nominal size alone does not describe every mounting detail.

Send the machine model, flyer reference, bobbin arrangement, fitted-position photographs and quantity. Include a drawing when the existing flyer is modified or the marking is unreadable. List pressure fingers as separate items when they are also required, so that the complete flyer and its replaceable parts are not confused.
